From electrotechnical planning to switch cabinet construction
and electrical installation - a well thought-out concept.

Elektrotechnical planning and construction

Our technicians have many years of experience in electrotechnical planning and construction with EPLAN P8. Based on our pSchematics Standard, our electrical designers tailor the electrical circuit diagram to your system. Special requirements for the North American market are taken into account during planning and implementation.

  • design of circuit diagrams with EPLAN P8
  • circuit diagrams, overview lists, parts lists
  • support in case of resource bottlenecks
  • projects with special requirements (e.g. UL/CSA)

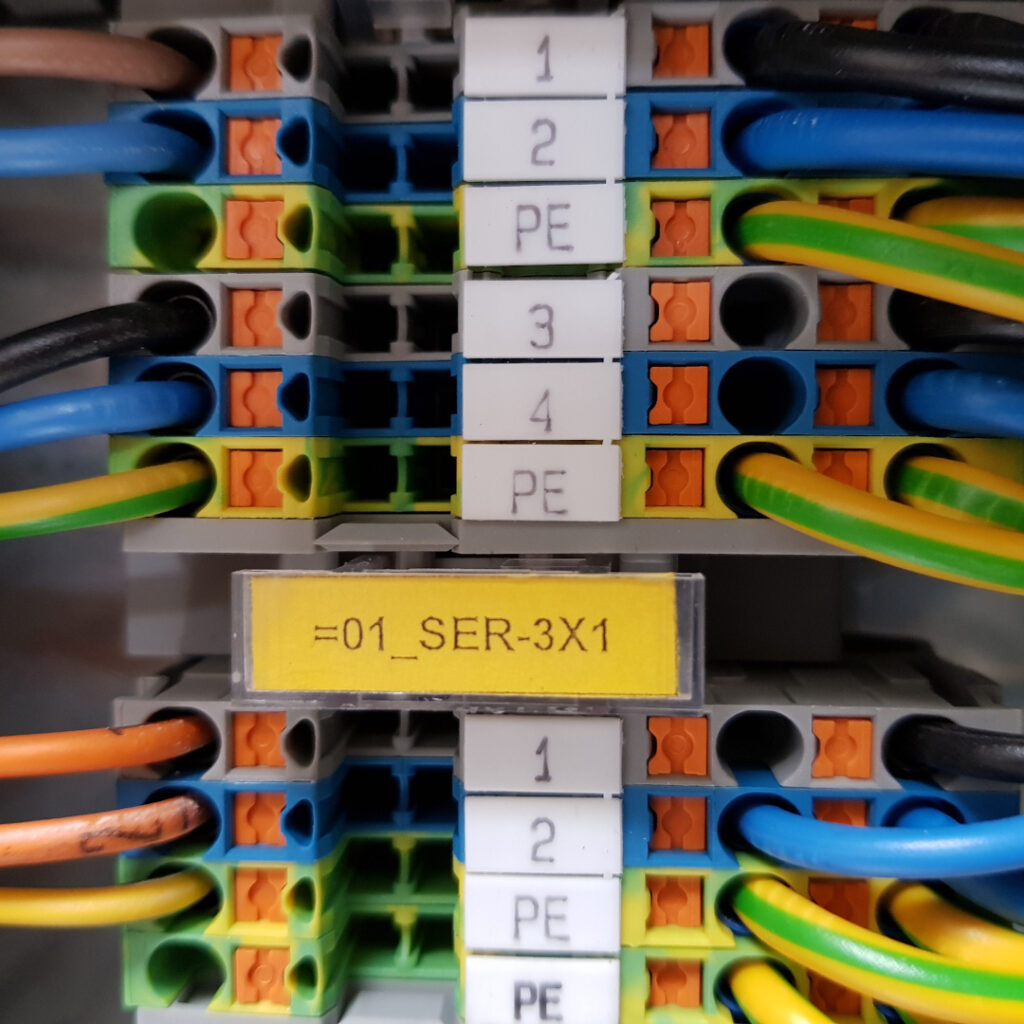

The switch cabinet construction

Switch cabinets planned by ourselves are built in our own production. Due to the standardized components of leading manufacturers and a clear concept, we can already start with the control cabinet construction, although the electrotechnical planning is not yet completely finished. We can react flexibly to changes at short notice.

  • own production of switch cabinets planned by us
  • components of leading manufacturers
  • short lead times
  • comprehensive quality control

Electrical installation

Our scope of services also includes the electrical installation of machinery and systems. Experienced electricians take into account the specifications of the customer or target country, as well as compliance with EMC and safety requirements.

  • use of high-quality components
  • consideration of specifications
  • experienced site management

Sistema calculation

The Sistema calculation proves that the selected components and the electrotechnical interconnection comply with the specifications of the risk assessment. With regard to the required performance level (PLr) of each safety function Sistema can be used to check whether this is also complied with.

  • performance Level (PL) Check
  • category, MTTFB, DCavg, CCF
  • verification according to DIN EN ISO 13849

Tests and measurements

Within the scope of the production of electrotechnical controls, including the control cabinet, a number of standards are applied. Our trained specialists carry out measurements and check compliance with these specifications. The result is comprehensively documented and handed over to the customer as proof.

  • low-voltage switchgear and controlgear assemblies
    nach DIN EN 61439 (VDE 0660-600)
  • electrical equipment of machinery
    according to DIN EN 60204 (VDE 0113)
  • network cables
    according to DIN EN 50173 (VDE 0800-173)
